ShowCAD Control Systems

ShowCAD Artist 3

After more than ten years of continuous development, the most powerful lighting control software on the planet just gets better and better.


Uses

Connectivity

Programming

Cue List Features

Operator Control

Events

Media Output

Files

  • Nightclub: Artist has a long history as a go-to system for discotheque and nightclubs
  • Gymnasium: Trainer Cues from tablet, playback control etc
  • Therapy Room: Lighting mood setting and media playback
  • Fountains: Fountain device and lighting control with time code audio source
  • Public Spaces: Hotel lobbies, restaurants, bar, museums
  • Set Piece Theatre: Son et lumière, theme park vignettes
  • Experience: Theme park rides, tour guides, installation art etc.

  • DMX Output: Output via USB/DMX, Artnet, Kinet, PathPort. There is no limit to the number of universes that can be defined other than the power of the PC.
  • System Commands: Internal commands for triggering functions within Artist. These can be used with Cues or to Patch external devices to Artist.
  • MIDI Input/Output: USB connected MIDI interfaces can send or receive messages via System Commands
  • DMX Input: Artist can receive 1 universe of DMX data via Artnet and connect to System Commands
  • Industrial Automation Data: Digital and Analogue data can be sent and received and connected to Artist via System Command
  • Serial Data: Serial data connect as COM ports can be connected via System Commands
  • Network Text Data
    Simple text messages from an external device connected on TCP/IP can directly access System Commands

  • Complex Fixture Profiles: Artist has a comprehensive library of Fixture Profiles. In addition, it has a Profile Wizard that steps through creating a new Profile. These Profiles are used to create instances of Fixture install on the DMX outputs.
  • Fixture Control: The parameters of a fixture can be controlled with Linear, X/Y, Polar, Colour Mix and Selector control defined in the Profile. There is a graphical representation of the DMX output.
  • Cue Lists: These lists contain Cues which are the central playback objects. There can be any number of Cue Lists, and they can interact or be independent of one another.
  • Scenes: These are like macros. They can contain stepped sequence and used over and over by Cues.
    Chase: These are available for every parameter of a fixture and can be customised.
  • Effects: Effects are available for every parameter of a fixture and can be customised for the type of parameter (i.e. yoke, mirror, colour mix etc)
    System Commands: These commands can be used to access most functions of the system e.g. play media file, activate Cue List, send MIDI message, close Artist, start time code etc.

  • Interlocked: Each Cue within the list is interlocked, meaning that only one Cue can be on at one time.
  • Momentary: The Cue is on while the button is pressed. Think of it like a manual flash List.
  • Latched: Each Cue is independent and can be toggled on or off.
  • House lights: All the Cues are active, and the Cues are controlled via faders. Presets can be used to fade from one state to another.
  • Events: The Cues in the list can be triggered from time coded events
  • Global Interlock: The Cues in this list can deactivate Cues in other specified Lists.
  • Global Solo: Cues in this list temporarily deactivate Cue in other specified list - which are restored if the Cue is deactivated.
  • Priority: Cues in this list are output to a Priority channel that overrides data from other Cue lists.
  • Daylight Harvesting: This feature takes light level data from a connect IA device and uses it to control the level of Cues. This is useful for reducing energy use.

  • Cue Lists Panel: This a panel that shows only the Cue Lists selected to the operator. The lists can be selected, and the Cues contained can be activated via mouse or touch screen.
  • Fader Panel: This panel displays faders connected to any list or cue. These will live track any change made elsewhere within the system. This panel has House light specific functions.
  • Master Panel: This contains Global Level and Rate control, Blackout and other global functions.
  • Cue Panel: This panel shows specific Cues only.
  • Multiple Instance: You can create multiple instances of this panel specifically for low resolution screens.
  • Remote: Multiple tablets with the remote version of the panel can be customised for each location.
  • Patching: Patching facilitates connect external devices to internal System Commands

  • List Events: Events can be directly connected to a Cue List to automatically activate and deactivate Cues.
  • Event scripts: Scripts connect events to System Commands that can access all System functions.
  • MIDI Time Code: An MTC stream can be used to trigger System Commands at specific times on the stream.
  • Time-of-Day: An RTC script triggers Systems Commands at specific times of day.
  • Media Events: Audio and Video files can be played with Artist and the time stream can be used to trigger events.

Audio Files: These can be played and output through any number of installed output devices or channels. The time stream from multiple running files can be tracked in a script or connected to a Cue List’s events.

Video Files: These can be played and displayed on any connected screen. Multiple playing file can stream events to the system.

  • Workspace: These are files that make up the workspace. They are, .fix, .scn,.clt,.jopf and some others.
  • Profiles: The fixture profiles are contained in a .JPF file.
  • Backup: Each time a workspace is saved, Artist copies the previous save to an archive file. In this way, you can restore previous versions of your workspace.
  • Log: This file stores Artist loading and errors for diagnostics.
  • Activity: Artist can log Cue activity. It shows when cues are activated and deactivated.
  • Chronometer: This file logs the hours of System use.

Massive LED Arrays Made Easy

  • 64,000+ DMX output channels (128 universes) to control a potential 20,000+ RGB fixtures
  • Full two-dimensional matrixing across all DMX universes
  • Fully variable colour pattern generators for a huge number of automated looks
  • Real time video to DMX sampling from video files or live video input

Moving Light Magic

  • Hundreds of fixture control templates for moving lights and colour changers from 50+ manufacturers
  • Fully variable effects generators for a huge number of automated colour, beam, focus and movement sequences
  • Full macro programming of multiple fixture colour, beam, focus and movement parameters

Comprehensive Control

  • RS232/422 output for video sources, switches etc.
  • RS232 input for system control
  • SMPTE / EBU time code synchronisation
  • Full and accurate MIDI message input/output capability
  • MIDI time code synchronisation
  • External audio triggers with adjustable filters
  • Sync to audio files off disc
  • Real time clock with Global 365-day calendar function
  • DMX in over USB and Ethernet (PathPort protocol)
  • Radio and IR remote control
  • Remote control over local network and internet

Exceptional Ease of Use

  • Full complement of ‘Wizards’ to guide rig and channel set-up procedures
  • Complete ‘snagging’ toolset to find and adjust errant channels or fixtures
  • Built-in templates for MIDI keyboards and control panels
  • Situation-specific operator user interface screens


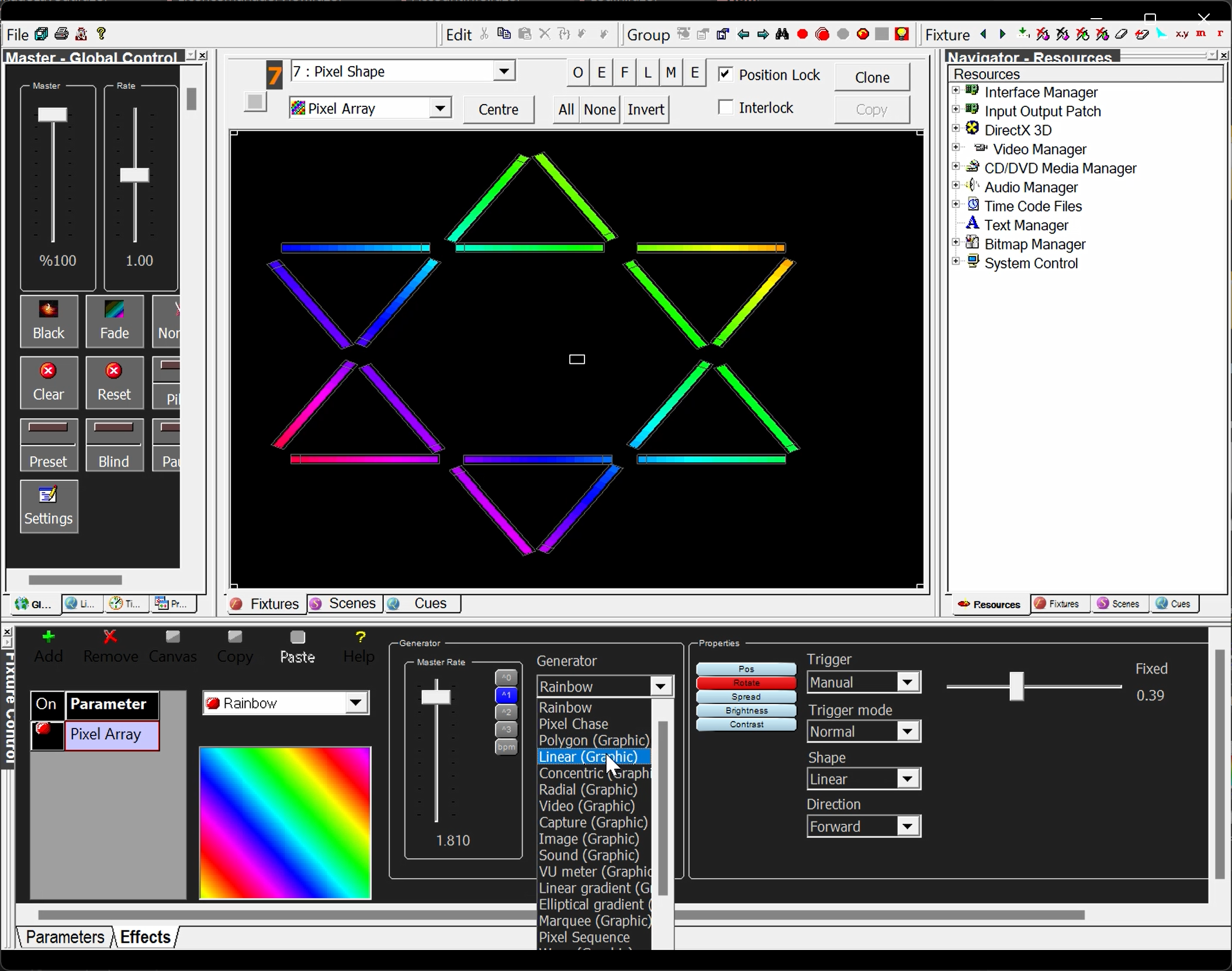

User GUI

Artist 3 provides a graphical user interface (GUI) to allow simplified control for users. The GUI is particularly effective when used with a touch-screen monitor.



ShowCAD Artist 3 Tutorials

ShowCAD Artist 3 is a very powerful control system found in nightclubs, bars and various other entertainment installations in the UK and across the world. This tutorial series will help you familiarise with Artist 3.

Try Artist 3 Today

Fully functional for 30 days!

Please email us at download@showcad.com and our system will reply immediately with access to our File Download Area.

Click here to email us:

The Latest Artist 3 Release is:

Version 3.1.53.541
